Filament Wound Composites
공정과 제품

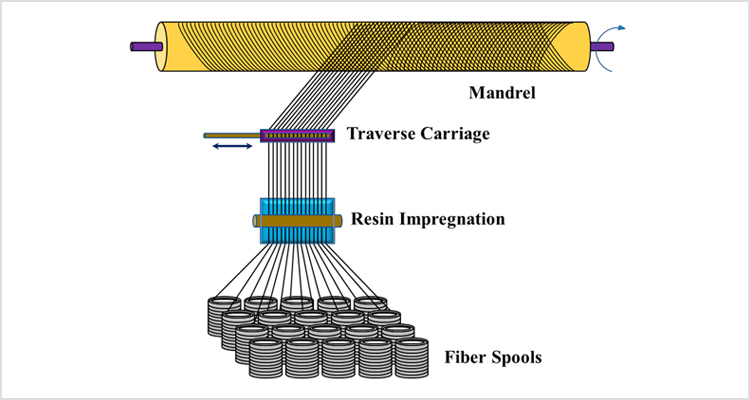

- Filament Winding Process

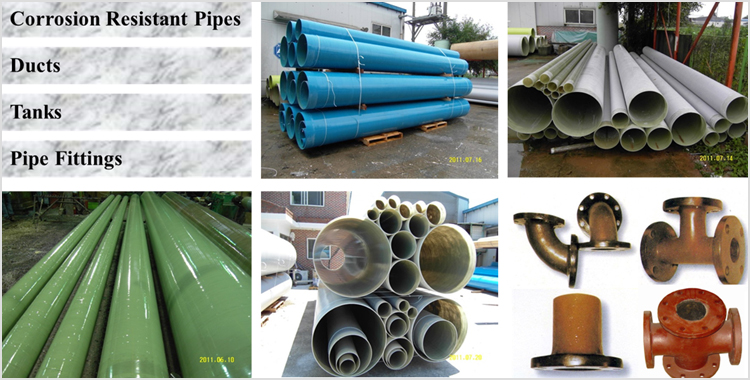

- Products
제품 표준표
- Corrosion Resistant Pipes
| Inner Dia.(mm) | Thickness(mm) |
|---|---|
| 25 | 3.5 |
| 32 | 3.5 |
| 40 | 4.0 |
| 50 | 4.0 |
| 65 | 4.0 |
| 80 | 4.0 |
| 100 | 4.0 |
| 125 | 4.0 |
| 150 | 4.5 |
| 200 | 5.0 |
| 250 | 6.0 |
| 300 | 6.5 |
| 350 | 7.0 |
| 400 | 7.5 |
| 450 | 8.0 |
| 500 | 9.0 |
| 550 | 9.5 |
| 600 | 10.5 |
| 650 | 11.0 |
| 700 | 12.0 |
| 750 | 12.5 |
| 800 | 13.5 |
| 850 | 14.0 |
| 900 | 15.0 |
| 950 | 17.0 |
| 1000 | 19.0/td> |
| 1100 | 21.0 |
| 1200 | 23.0 |
| 1300 | 25.0 |
| 1400 | 27.5 |
- Ducts
- Tanks
| Tank Height(m) |
Tank Dia.(m) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.6 | 1.0 | 1.5 | 2.1 | 3.0 | 3.6 | |||||||
| H/L | F/W | H/L | F/W | H/L | F/W | H/L | F/W | H/L | F/W | H/L | F/W | |
| 0.6 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 |
| 1.2 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 |
| 1.8 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 6.4 | 3 | 6.4 | 3 |
| 2.4 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 6.4 | 3 | 6.4 | 3 | 8.0 | 3.5 |
| 3.0 | 4.8 | 3 | 4.8 | 3 | 4.8 | 3 | 6.4 | 3 | 8.0 | 3.5 | 8.0 | 4 |
| 3.5 | 4.8 | 3 | 4.8 | 3 | 6.4 | 3 | 6.4 | 3 | 8.0 | 4 | 9.6 | 4.5 |
| 4.2 | 4.8 | 3 | 4.8 | 3 | 6.4 | 3 | 6.4 | 3.5 | 8.0 | 4.5 | 9.6 | 5 |
| 4.8 | 4.8 | 3 | 6.4 | 3 | 6.4 | 3 | 8.0 | 4 | 9.6 | 5 | 11.2 | 5.5 |
| 5.4 | 4.8 | 3 | 6.4 | 3 | 6.4 | 3.5 | 8.0 | 4 | 9.6 | 5.5 | 12.8 | 6 |
| 6.1 | 4.8 | 3 | 6.4 | 3 | 6.4 | 3.5 | 9.6 | 4.5 | 11.2 | 6 | 12.8 | 7 |
| 6.7 | 6.4 | 3 | 6.4 | 3 | 8.0 | 4 | 9.6 | 5 | 12.8 | 6.5 | 14.4 | 7.5 |
| 7.3 | 6.4 | 3 | 6.4 | 3 | 8.0 | 4 | 9.6 | 5 | 12.8 | 7 | 16.0 | 8 |
- Pipe Fittings
| Inner Dia. (mm) |
A | B | C | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 50 | 150 | 250 | 150 | 150 | 400 | 41 | 150 |
| 80 | 175 | 300 | 150 | 150 | 450 | 63 | 150 |
| 100 | 200 | 350 | 150 | 150 | 500 | 63 | 150 |
| 150 | 250 | 400 | 200 | 225 | 600 | 94 | 200 |
| 200 | 300 | 500 | 250 | 300 | 750 | 125 | 200 |
| 250 | 350 | 600 | 250 | 375 | 850 | 156 | 250 |
| 300 | 400 | 650 | 300 | 450 | 825 | 188 | 250 |
| 350 | 450 | 750 | 300 | 525 | 1050 | 219 | 300 |
| 400 | 500 | 800 | 350 | 600 | 1150 | 250 | 300 |
| 450 | 525 | 900 | 350 | 675 | 1250 | 281 | 300 |
| 500 | 550 | 950 | 400 | 750 | 1350 | 313 | 300 |
| 600 | 600 | 1050 | 450 | 900 | 1500 | 375 | 300 |
| 700 | 750 | 1300 | 500 | 1125 | 1800 | 466 | 370 |
| 900 | 825 | 1550 | 550 | 1350 | 2100 | 563 | 370 |
| 1050 | 900 | 1800 | 600 | 1575 | 2400 | 650 | 375 |
